Vetro 40 Sync - by , 2020-05-04 10:30:33 Sliding system for glass doors with simultaneous opening with reduced clamp height (only 40 mm), with Fluid soft closing mechanisms, door thickness: 8 ÷ 12.7 mm, door capacity: 80 kg, door minimum width: 780 mm, lower gap: 10 mm
Terno Scorrevoli Sliding system for glass doors with simultaneous opening with reduced clamp height (only 40 mm), with Fluid soft closing mechanisms, door thickness: 8 ÷ 12.7 mm, door capacity: 80 kg, door minimum width: 780 mm, lower gap: 10 mm
Patented Vetro 40 Sync Zoom

Vetro 40 Sync

Sliding systems for glass doors with simultaneous opening

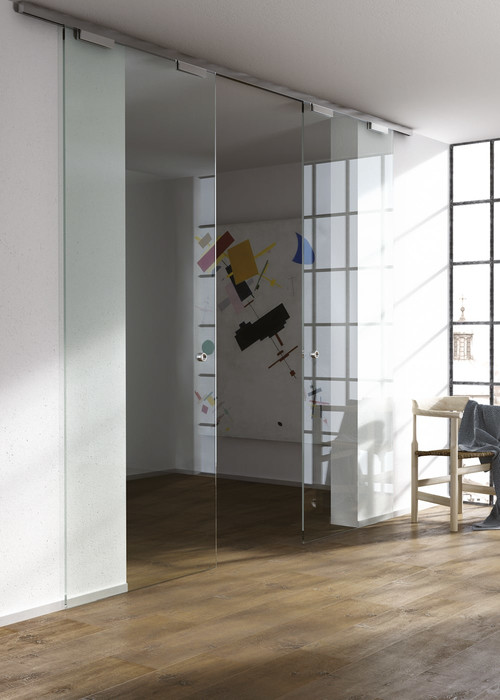

Vetro 40 Sync is a sliding system suitable for synchronized opening glass door with a reduced height clamp (only 40 mm).

The system is compatible with monolithic or laminated glass, with thicknesses from 8-8,7 mm, 10-10,7 mm and 12-12,7 mm.

Features
Thickness Thickness: 8 ÷ 12,7 mm
Width Width: Min 780 mm
Weight Weight: Max 80 kg
Close to floor Close to floor: 10 mm
Fermi
Fluid dampers Fluid dampers
Features
Thickness Thickness: 8 ÷ 12,7 mm
Width Width: Min 780 mm
Weight Weight: Max 80 kg
Close to floor Close to floor: 10 mm
Fermi
Fluid dampers Fluid dampers

Vetro 40 Sync is a sliding system suitable for synchronized opening glass door with a reduced height clamp (only 40 mm).

The system is compatible with monolithic or laminated glass, with thicknesses from 8-8,7 mm, 10-10,7 mm and 12-12,7 mm.

Vetro 40 Sync

A customizable system

The system is available with full-length clamping system that can be cut to size at a later time.

Vetro 40 Sync integrates the new sliding trolleys with Fluid technology: the movement turns out to be extremely soft, in opening and closing, for a constantly improved user experience.

Vetro 40 Sync

A customizable system

The system is available with full-length clamping system that can be cut to size at a later time.

Vetro 40 Sync integrates the new sliding trolleys with Fluid technology: the movement turns out to be extremely soft, in opening and closing, for a constantly improved user experience.

Vetro 40 Sync

Materials
