Diva Fluid

Made in Italy Sliding Barn Door system

Next-gen soft-closing sliding system

Diva Fluid: Sliding doors system

The Italian Sliding Barn Door system

Italian design

Italian design

STYLE AND TECHNOLOGY

Embrace the essence of Italian design within your sliding barn doors!

Diva Fluid is the latest patented sliding system specifically crafted for design barn doors, featuring exposed aluminum tracks and Fluid’s next-generation soft-closing technology.

  • NO VISIBLE SOFT CLOSING DAMPER
  • NO VISIBLE SLIDING TROLLEYS

A flexible system

Elegance and Functionality for Any Wall Type!

Diva Fluid boasts a minimalistic style with optimized sliding trolleys recessed into the door, while patented Fluid soft-closing dampers are discreetly concealed within the track, elevating the overall door design. Diva Fluid is suitable for solid brick wall, hollow brick wall and concrete wall.
Diva Fluid is also suitable for plasterboard walls, as long as the specific anchors for plasterboard are used and the installation is done accurately.

  • Brushed Anodized Nickel

    Brushed Anodized Nickel

  • Brushed Anodized Black

    Brushed Anodized Black

  • Brushed Anodized Silver

    Brushed Anodized Silver

    DESIGN & STYLE SOLUTION

    You only see door and track

    The exposed aluminum sliding track set is available in various finishes, aligning with the latest design trends.

    Brushed Anodized Nickel Brushed Anodized Black Brushed Anodized Silver

    INNOVATIVE & PATENTED system

    Reduced opening force, effortless soft-closing, smooth movement, reliable performance

    Diva Fluid system integrates the latest generation of soft closing dampers, equipped with our innovative Fluid technology with double springs, for smooth braking that ensures an optimal user experience. A new patented system from Terno Scorrevoli’s years of experience.
    The product performance undergoes continuous quality testing in Terno Scorrevoli’s TLAB laboratory.

    CLOSING TEST: 80 kg (176 Lbs) — 0,6 m/s

    <h2>CLOSING TEST: 80 kg (176 Lbs) — 0,6 m/s</h2> <h2>CLOSING TEST: 80 kg (176 Lbs) — 0,6 m/s</h2>

    T-LAB is the location where tests are conducted to improve performances of Terno systems and the testing machine developed by Terno Scorrevoli

    Discover T-Lab

    Flexible flooring solutions

    <h2>Flexible flooring solutions </h2>

    In the Diva Fluid system, the sliding mechanism is located at the upper part of the door. Since the door’s weight is supported from above by the wall-mounted sliding tracks, and there are no sliding elements at the bottom, Diva Fluid can be effectively used on uneven floors or carpeting.

    Patented anti-unhooking system

    Patented anti-unhooking system

    Safety first

    A safe and practical Anti-Unhooking System

    The new patented anti-unhooking system allows to grant the maximal safety to all installers and end-users, avoiding the door to fall in any circumstance.

    EASY TO INSTALL

    Simplifying assembly with new support jig

    Ease of installation is a reality in the assembly process of the new Diva Fluid, thanks to the introduction of an innovative support jig.

    This new jig was developed with the aim of guiding installers step by step, greatly simplifying the entire installation process.

    Its introduction aims to ensure not only a smooth assembly, but also to maximize the overall functionality of the system.

    With this support jig, installers can proceed with the assembly of the Diva Fluid system intuitively and efficiently, ensuring optimal installation and excellent system performance.

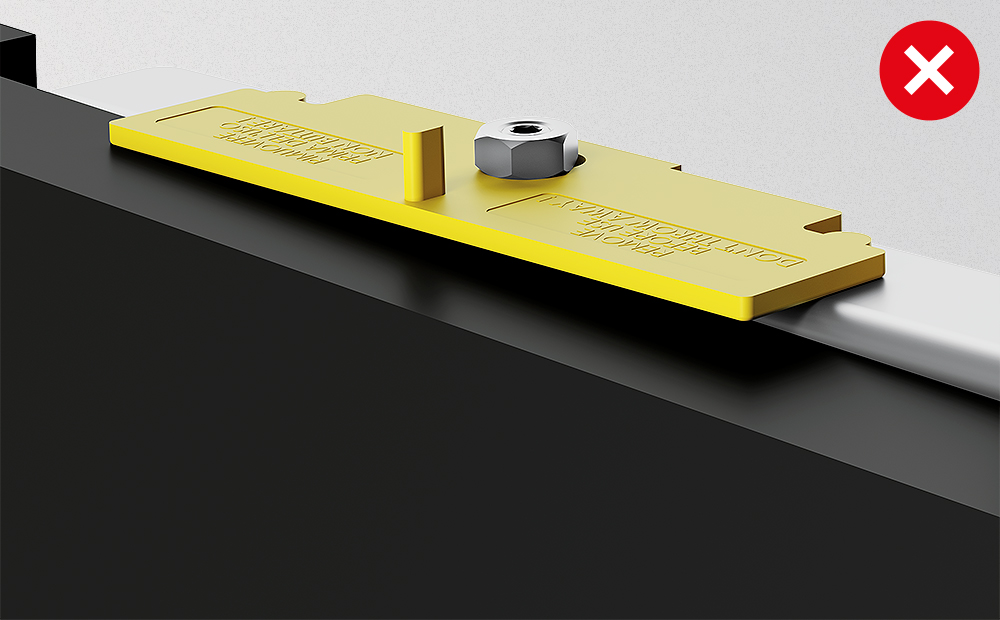

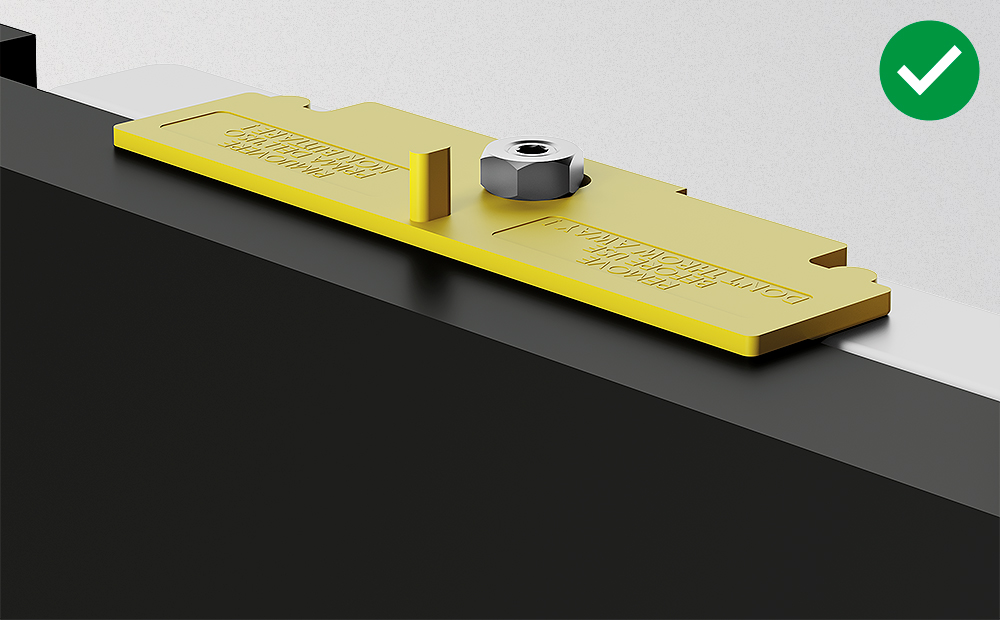

    Wrong Installation Right Installation

    Why choose

    • DESIGN

      Diva Fluid embodies the unique minimalistic style synonymous with ‘Made in Italy,’ elevating the original door design to the next level.

    • COMFORTABLE

      Reduced door opening force requirement combined with a quiet movement and an effortless soft-closing motion to ensure the best user experience possible.

    • CERTIFICATE

      The quality and reliability of the Diva Fluid system are officially certified thanks to tests carried out at authorized laboratories and certification bodies, performing up to 100,000 door opening cycles.

    • FOR CARPETED FLOORS

      No wheels at the bottom, the sliding system is at the top of the door. Diva Fluid is the ideal solution for carpeted floors.

    • SAFESafety is a top priority. Diva Fluid integrates a secure and practical anti-unhooking feature to prevent any potential mistake during the installation and guarantee maximal safety.

    • EASY TO INSTALL

      Assembling process has been simplified thanks to new support jig.

    Diva Fluid — datasheet

    Features

    Width

    Width: 600 ÷ 1500 mm

    Weight

    Weight: Max 80 kg

    Close to floor

    Close to floor: 10 mm

    Stoppers

    Fluid dampers

    Fluid dampers

    Classic stopper Classic stopper

    Materials

    Door material
